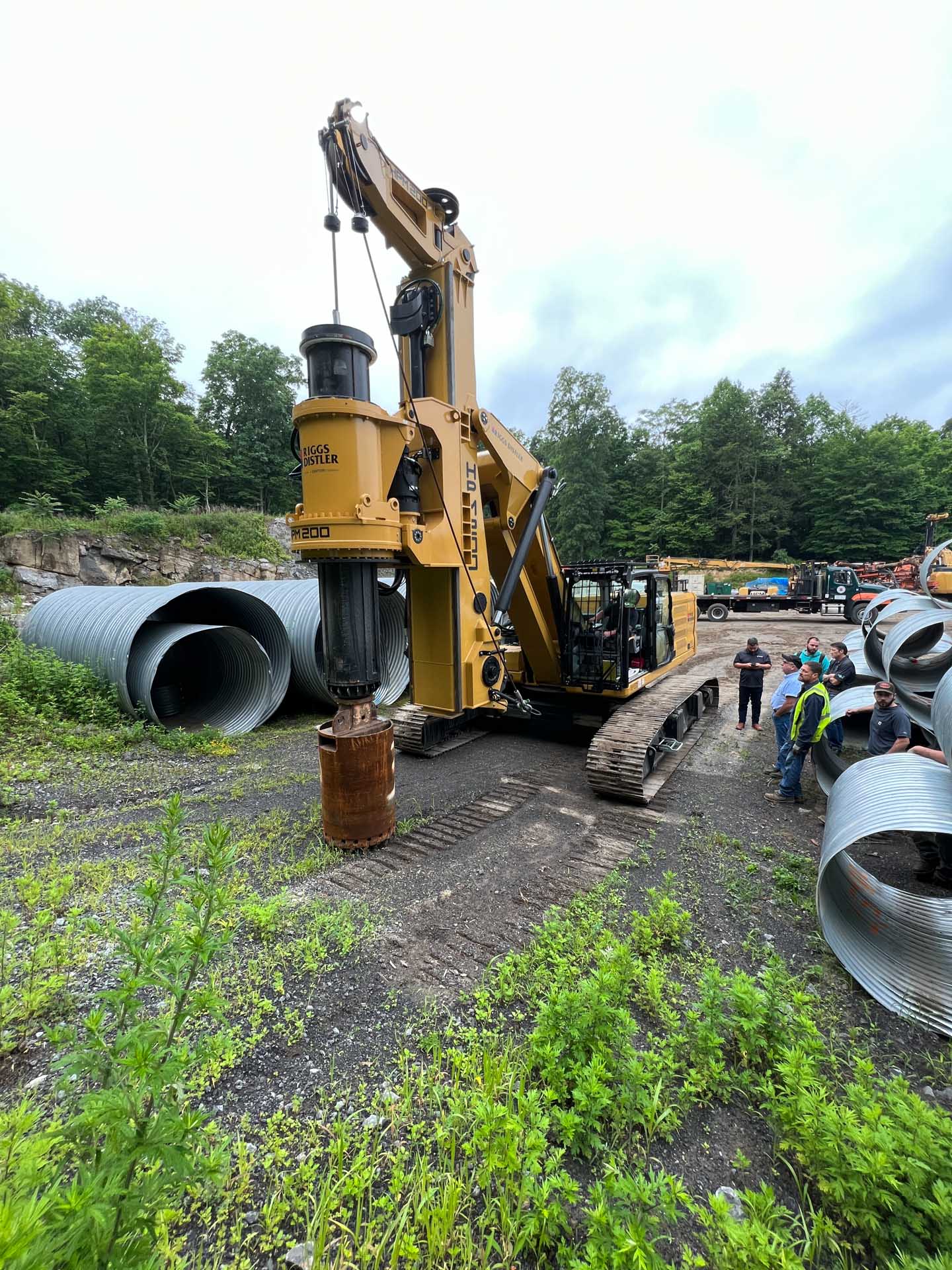

HPM200 Short Mast
| Base | CAT®330 |
|---|---|
| Drilling Depth | 20 m65' ft |
| Drilling Diameter | 2400 mm8' ft inc |
| Operating Weight | 106200 lbf48200 kg |
| Rotary Effective Torque | 185000 lb.ft251 kNm |
Short or tall, you have them all!
The HPM200 Short Mast have the benefits of the long mast version in a low headroom machine. In fact, by simply adding the mast extension and longer cylinders it can easily and quickly converted in a HPM200 Standard.
HPM200 Short Mast
Short or tall, you have them all!The HPM200 are mounted on CAT 330 NGH base, equipped with CAT C7.1 engine, which delivers an ISO power of 205 kW (175 KW Fly Wheel) which meets U.S. EPA Tier 4 Final, EU Stage IV, Japan 2014 (Tier 4 Final) and Corea Tier 4 Final with an after-treatment system that does not require maintenance or downtime.
It can fit a 2400mm (8’) tool along the mast and drill up to 20m (65’) with the standard 6 elements interlocking kelly bar. Other depths are available on request.
By simply adding the mast extension and longer cylinders it can easily and quickly converted in a HPM200 Standard.
Counterweight Lifting System
This HPM can be assembled by itself without the need of assistant cranes.
This patented feature gives contractors the ability to quickly and easily reduce the overall weight of the rig during the transport phase, making it possible to utilise a standard-sized trailer and reduce then hauling costs and avoids oversize/overweight permits.
Auxiliary House Lock
The operator can make the full use of the whole torque without having the machine swinging from side to side.
This patented feature can be automatic or enabled through a button on the joystick. The enabling of the brake offers increased comfort for the operator as the vibrations when drilling on rock are reduced to almost zero.
Long Mast Configuration
By adding mast extension and longer kelly bar, this machine can be quickly converted into a standard height machine, allowing it to perform greater depths and be used for different drilling applications, such as CFA, soil mixing, Displacement, etc.
Comfort Cabin
The HPM cabin is equipped with a comfy and wide adjustable seat. The standard automatic air conditioning keeps the cabin at the ideal temperature throughout the day.
All machine interfaces are ergonomically positioned and designed for optimum control and efficiency. The easy accessible keyboards allow the operator to quickly get the rig ready to drill.
Automatic Functions
Automatic functions allow the operator to reduce rig-up time and get the most in productivity.
With a push of a button, the operator can make use of automatic functions, including: Verticality of the mast, Automatic Rig-up, Automatic return to drilling point and rotary auto drive.
Expandable Tracks
The retractable undercarriage allows to reduce width of the machine for transport phases, reducing hauling related costs and avoiding transport permits. Once expanded, the undercarriage provides great stability at any working radius for a 360° drilling capability.
Drilling Cruise Control
The HPM software includes the enabling of the drilling cruise control. When the system is enabled, the operator can preselect the rotary gear so it’s speed. With a push of a button the system can be activated and the operator can also lock the crowd pressure for a complete automatic drilling mode. Safety systems can disable the function immediately.
Remote Control
Increase safety and flexibility when loading or unloading the equipment. The operator can make use of different viewing angles while moving the machine from outside the cabin. Having a complete view of the rig during these phases allows the operator to make sure that hoses, wirings and wire ropes are safely positioned. Drilling functions are enabled through the remote control for a safe service and maintenance of the rig.
Technical data
All data presented refers to the standard model and may vary based on specific equipment configuration and customer requirements.
Need more torque, pull or depth? Contact us to explore the full range of configuration options.
| Base | CAT®330 |
|---|---|
| Engine Type | C7.1 |
| Installed Power | 205 hp275 kW |
| Max. Effective Torque | 185000 ft.lbs251 kNm |
|---|---|
| Working Speed | 9-24 rpm |
| Discharge Speed | 50-120 rpm |
| Main winch pull | 230 kN51700 lbf |
|---|
| Crowd Type | Cylinder Crowd System |
|---|---|
| Max. crowd force | 310 kN70000 lbf |
| Crowd Stroke | 2210 mm7'3" ft inc |
| Drilling Depth | 20 m65' ft |
|---|---|
| Drilling Diameter | 2400 mm8' ft inc |
| Operating Weight | 106200 lbf48200 kg |
|---|---|
| Transport weight | 33000 kg73400 lb |
| Transport width | 3000 mm9'10" ft inc |
| Transport height | 12' ft inc3650 mm |
