HPM200 11′

HPM200 11'
Base CAT®330
Drilling Depth 20 m65' ft
Drilling Diameter 11' ft inc3350 mm
Operating Weight 116000 lbf53000 kg
Rotary Effective Torque 185000 lb.ft251 kNm

The G.O.A.T.

11 feet is the tool you can fit in front of the mast.
Thanks to the design of the rotary sled and head mast, the HPM200 11′ can work with large tools at different working radius.

HPM200 11'

The G.O.A.T.

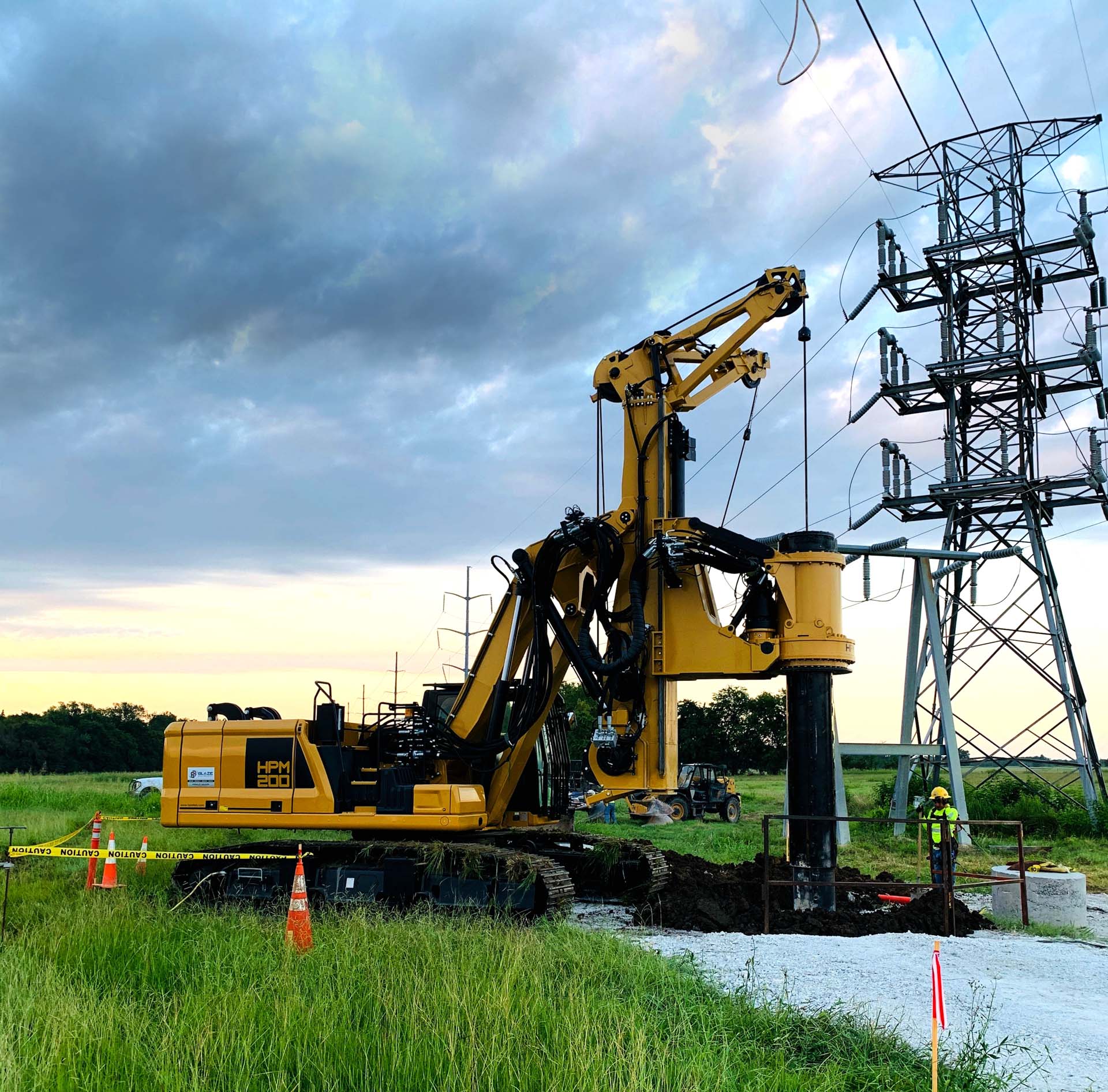

Thanks to the design of the rotary and head mast, the machine can work with 3300 tools in front of the mast at different working radius. Self-assembly kelly bar and the patented lifting counterweight system allow to assembly the rig in short time and without the need of a lifting device.

The HPM200 are mounted on CAT 330 NGH base, equipped with CAT C7.1 engine, which delivers an ISO power of 205 kW (175 KW Fly Wheel) which meets U.S. EPA Tier 4 Final, EU Stage IV, Japan 2014 (Tier 4 Final) and Corea Tier 4 Final with an after-treatment system that does not require maintenance or downtime.


Counterweight Lifting System

This HPM can be assembled by itself without the need of assistant cranes.

This patented feature gives contractors the ability to quickly and easily reduce the overall weight of the rig during the transport phase, making it possible to utilise a standard-sized trailer and reduce then hauling costs and avoids oversize/overweight permits.

Auxiliary House Lock

The operator can make the full use of the whole torque without having the machine swinging from side to side.

This patented feature can be automatic or enabled through a button on the joystick. The enabling of the brake offers increased comfort for the operator as the vibrations when drilling on rock are reduced to almost zero.

Long Mast Configuration

By adding mast extension and longer kelly bar, this machine can be quickly converted into a standard height machine, allowing it to perform greater depths and be used for different drilling applications, such as CFA, soil mixing, Displacement, etc.

Comfort Cabin

The HPM cabin is equipped with a comfy and wide adjustable seat. The standard automatic air conditioning keeps the cabin at the ideal temperature throughout the day.

All machine interfaces are ergonomically positioned and designed for optimum control and efficiency. The easy accessible keyboards allow the operator to quickly get the rig ready to drill.

Automatic Functions

Automatic functions allow the operator to reduce rig-up time and get the most in productivity.
With a push of a button, the operator can make use of automatic functions, including: Verticality of the mast, Automatic Rig-up, Automatic return to drilling point and rotary auto drive.

Expandable Tracks

The retractable undercarriage allows to reduce width of the machine for transport phases, reducing hauling related costs and avoiding transport permits. Once expanded, the undercarriage provides great stability at any working radius for a 360° drilling capability.

Drilling Cruise Control

The HPM software includes the enabling of the drilling cruise control. When the system is enabled, the operator can preselect the rotary gear so it’s speed. With a push of a button the system can be activated and the operator can also lock the crowd pressure for a complete automatic drilling mode. Safety systems can disable the function immediately.

Remote Control

Increase safety and flexibility when loading or unloading the equipment. The operator can make use of different viewing angles while moving the machine from outside the cabin. Having a complete view of the rig during these phases allows the operator to make sure that hoses, wirings and wire ropes are safely positioned. Drilling functions are enabled through the remote control for a safe service and maintenance of the rig.

Discover theHPM200 11'

Technical data

All data presented refers to the standard model and may vary based on specific equipment configuration and customer requirements.
Need more torque, pull or depth? Contact us to explore the full range of configuration options.

Base
Base CAT®330
Engine Type C7.1
Installed Power 205 hp275 kW
Rotary
Max. Effective Torque 185000 ft.lbs251 kNm
Working Speed 9-24 rpm
Discharge Speed 50-120 rpm
Argany
Main winch pull 230 kN51700 lbf
Crowd
Crowd Type Cylinder Crowd System
Max. crowd force 310 kN70000 lbf
Crowd Stroke 2210 mm7'3" ft inc
Drilling
Drilling Depth 20 m65' ft
Drilling Diameter 11' ft inc3350 mm
Weight
Operating Weight 116000 lbf53000 kg
Transport weight 35000 kg77500 lb
Transport width 3000 mm9'10" ft inc
Transport height 10'4" ft inc3140 mm
